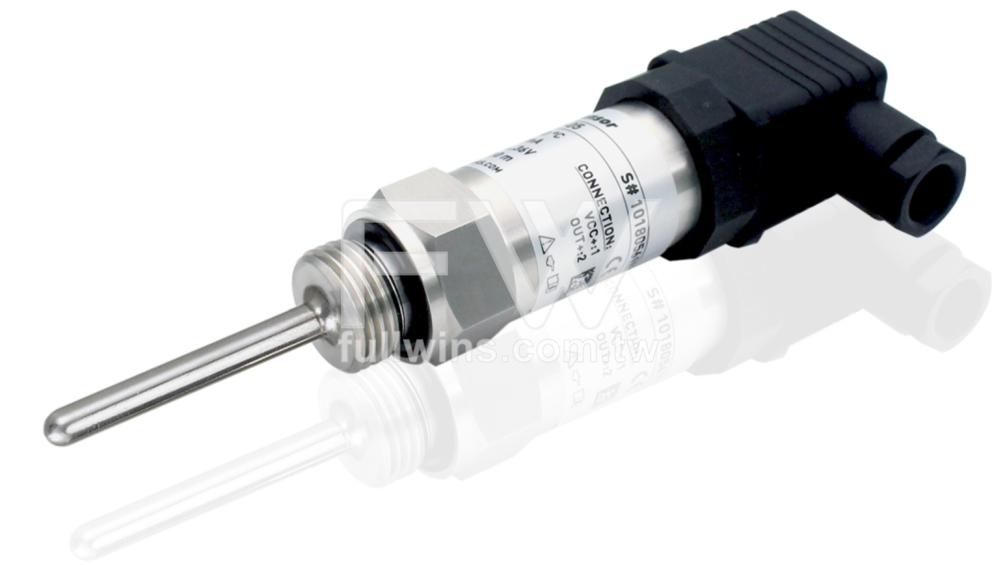

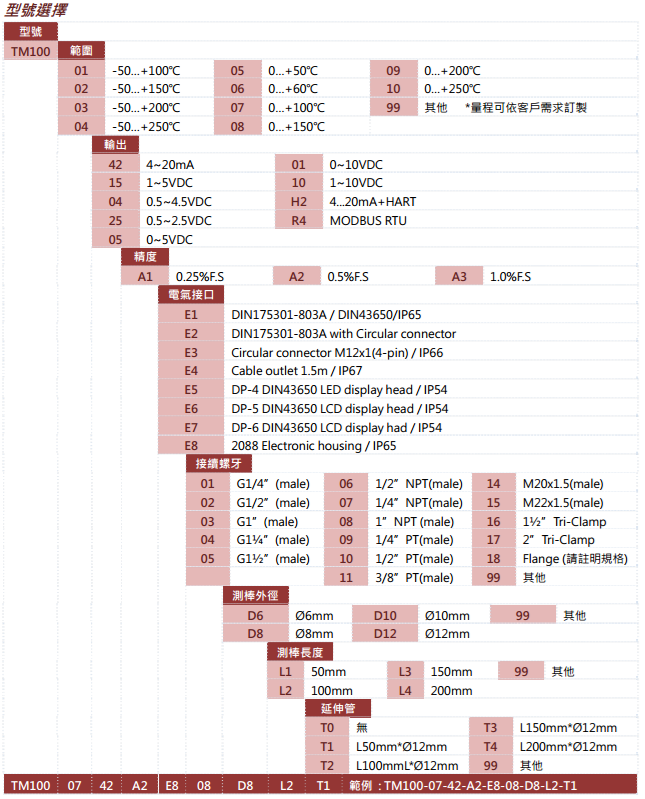

標稱量程 |
-50°C to 250°C |
|
|
感溫元件 |
PT100Ω |
|
|
精度 |
標準：±0.5%F.S.；最大±1.0%F.S. *包含線性+遲滯+重複性誤差 選項：±0.25%F.S. |
|
|
長期穩定性 |
±0.2%F.S. |
|
|
輸出信號 |
二線式4...20mA 三線式1…5VDC ; 0.5...4.5VDC ; 0.5...2.5VDC ; 0...5VDC ; 0...10VDC ; 1...10VDC 通訊協定4...20mA+HART；MODBUS RTU |
|
|
供應電源 |
9…30VDC |
輸出4...20mA |
|
9…30VDC |
輸出1…5VDC ; 0.5...4.5VDC ; 0...5VDC |
|
|
15…30VDC |
輸出0...10VDC ; 1...10VDC |
|
|
12…30VDC |
輸出四線式 MODBUS RTU |
|
|
本體材質 |
不銹鋼SS304 |
|
|
測棒外徑 |
Ø6mm ; Ø8mm ; Ø10mm ; Ø12mm |
|
|
保護等級 |
IP65 ; IP66 ; IP67 ; IP68 |
|
|
EMC測試 |
IEC610000-6-2 / IEC610000-6-3 |
|
|
絕緣電阻 |
100MΩ@100Vdc |
|
|
機械震動 |
10gRMS (20-2000Hz) |
|
|
衝擊 |
100g(10ms) |
|
|
選項 |
保護套管：請註明材質／尺寸 / 規格(牙口、法蘭口、衛生夾接) |
|

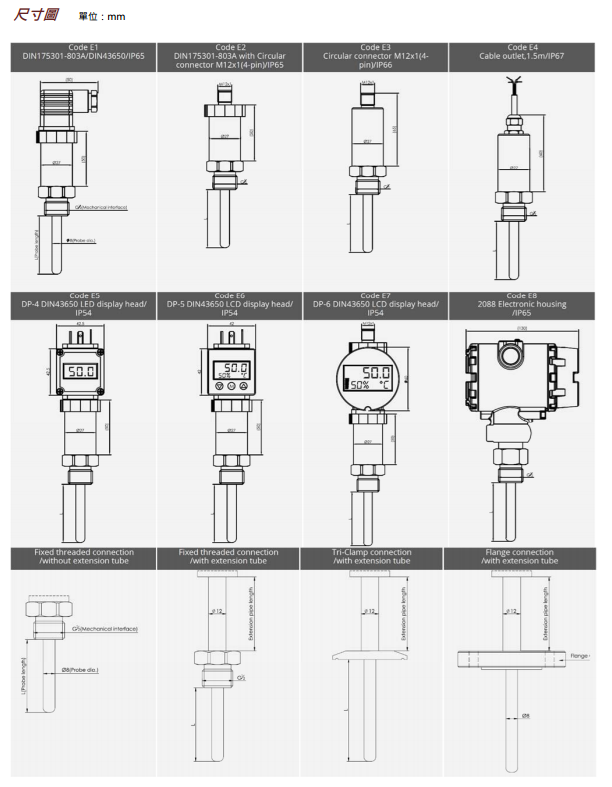

電氣接口
|
DIN175301-803A |
4…20mA 2-wire |
1…5VDC 3-wire |
0.5…4.5VDC 3-wire |
RS485 4-wire |
|
Connector M12x1(4-pin) |
4…20mA 2-wire |
1…5VDC 3-wire |
0.5…4.5VDC 3-wire |
RS485 4-wire |
|
+Vcc |
1 |
1 |
1 |
1 |
|
+Vcc |
1 |
1 |
1 |
1 |
|
OUT |
2 |
3 |
3 |
– |
|
OUT |
3 |
4 |
4 |
– |
|
GND |
– |
2 |
2 |
2 |
|
GND |
– |
3 |
3 |
3 |
|
RS485A |
– |
– |
– |
3 |
|
RS485A |
– |
– |
– |
2 |
|
RS485B |
– |
– |
– |
|
|
RS485B |
– |
– |
– |
4 |
